HARTING 09185646323 Datasheet
Part Number: 09185106963
Manufacturer: HARTING
Description: Headers & Wire Housings SEK-18 SV MA STD ANG29 RKZ 10P PL2 CLIP
Datasheet: 09185106963 Datasheet
Number of contacts: 6--64

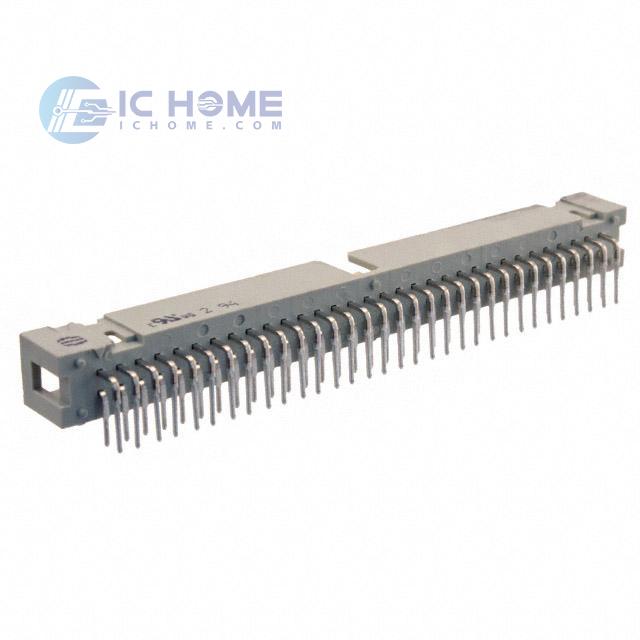

Male header with angled solder pins and pcb board lock
Length: 2.9 mm for 1.6 mm pcb thickness
| No.of contacts | Part Number | Part Number |
Part Number |
| 6 10 14 16 20 24 26 30 34 40 50 60 64 |
09185065323 09185105323 09185145323 09185165323 09185205323 09185245323 09185265323 09185305323 09185345323 09185405323 09185505323 09185605323 09185645323 |
09185066323 09185106323 09185146323 09185166323 09185206323 09185246323 09185266323 09185306323 09185346323 09185406323 09185506323 09185606323 09185646323 |
09185067323 09185107323 09185147323 09185167323 09185207323 09185247323 09185267323 09185307323 09185347323 09185407323 09185507323 09185607323 09185647323 |
Cable assemblies:
• Supply cable assemblies according to your specifications.
• A wide range of connector types available with various contact arrangements constitute the ideal solution to your wiring problems.
• Cables of all types in economic reel lengths are available.
Quality:
• Ensures reliable connections.
• Finished harnesses are subject to 100% quality checks on a HARTING test device.
• Insulation test by 1000 V.
• Contact resistance test.
Product Attributes:
| Product Status | Active |
|---|---|
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.242" (6.15mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Overall Contact Length | - |
| Insulation Height | 0.366" (9.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Keying Slot |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
