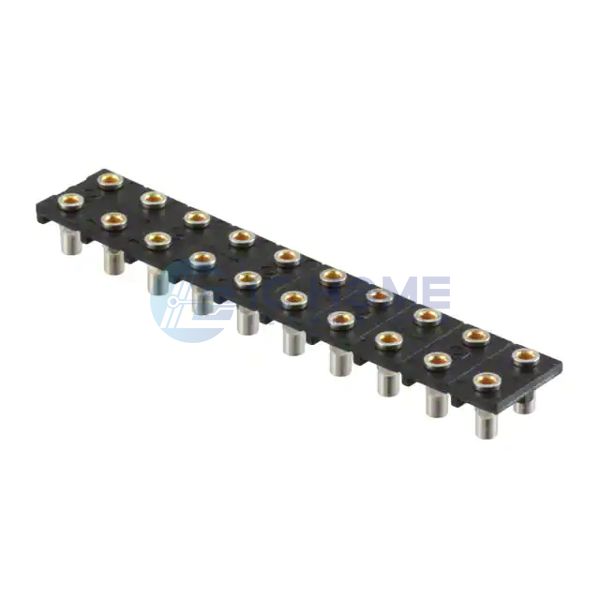

| Name | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Breakaway |
| Contact Type | Female Socket |
| Style | - |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Insulation Color | Black |
| Insulation Height | 0.040" (1.02mm) |
| Contact Length - Post | 0.129" (3.28mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 8A |
| Voltage Rating | - |
