| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta), 7.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 103mOhm @ 3.3A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 310 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 19W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) |

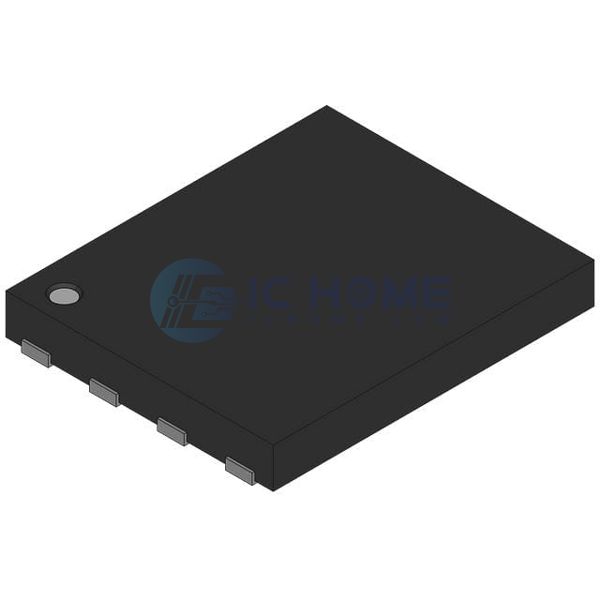

| Package / Case | 8-PowerWDFN |
