| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 95A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2880 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

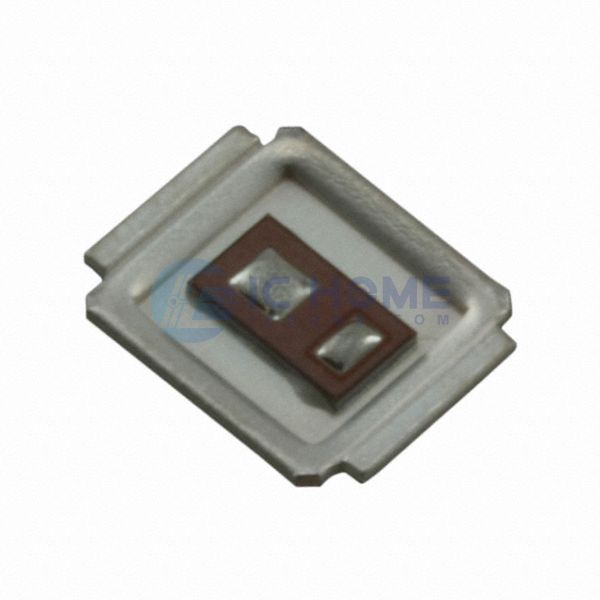

| Supplier Device Package | DIRECTFET™ SQ |
| Package / Case | DirectFET™ Isometric SQ |
