| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 2.4A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 590 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

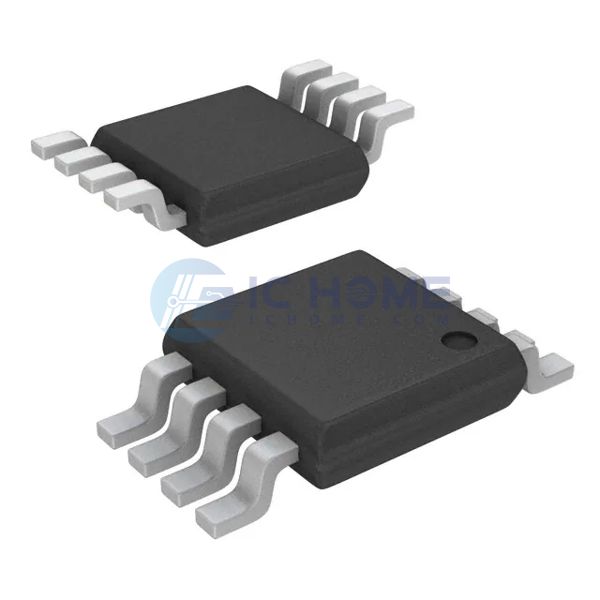

| Supplier Device Package | Micro8™ |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
