| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 51A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.5 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 988 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 26W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

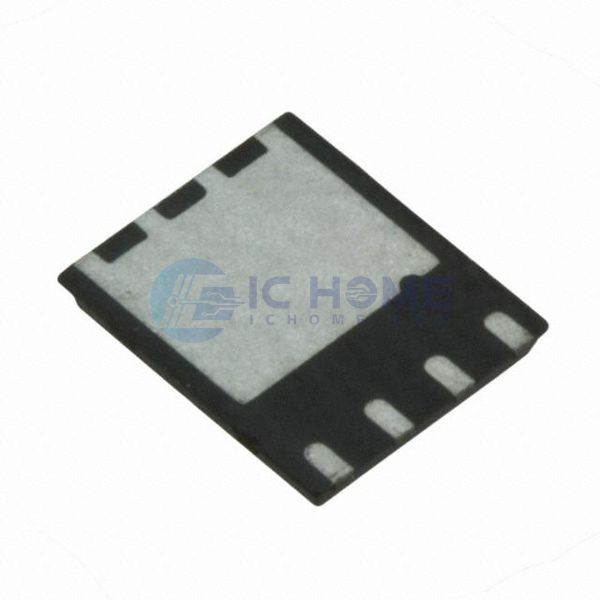

| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN |
