| Name | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 116 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 50A |
| Power - Max | 462 W |
| Switching Energy | 3.6mJ (on), 2.2mJ (off) |
| Input Type | Standard |
| Gate Charge | 440 nC |
| Td (on/off) @ 25°C | 35ns/430ns |
| Test Condition | 600V, 50A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 190 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

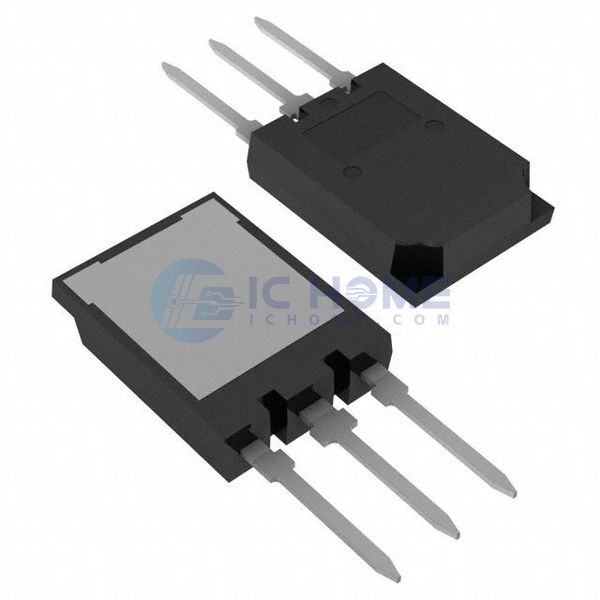

| Package / Case | TO-247-3 |
| Supplier Device Package | SUPER-247™ (TO-274AA) |
