| Name | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 48 A |
| Current - Collector Pulsed (Icm) | 72 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 24A |
| Power - Max | 250 W |
| Switching Energy | 115µJ (on), 600µJ (off) |
| Input Type | Standard |
| Gate Charge | 50 nC |
| Td (on/off) @ 25°C | 41ns/104ns |
| Test Condition | 400V, 24A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 89 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |

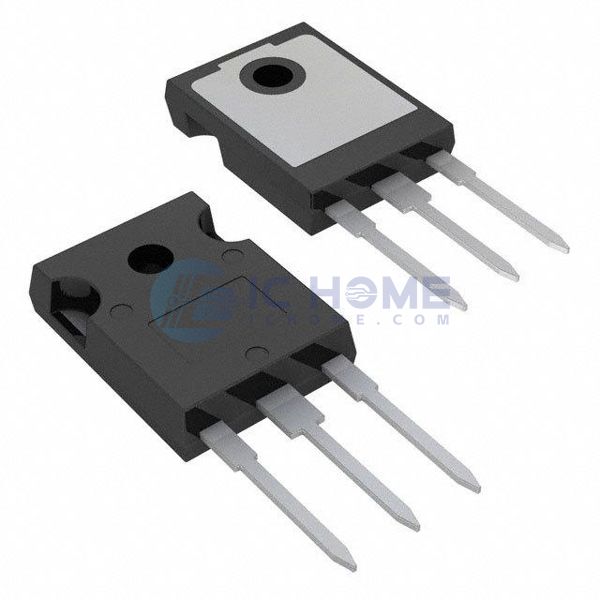

| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
