| Name | Value |
|---|---|
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 50% @ 1mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 7.5µs, 5.7µs |
| Rise / Fall Time (Typ) | 3.2µs, 4.7µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | 150mA |
| Voltage - Forward (Vf) (Typ) | 1.07V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |

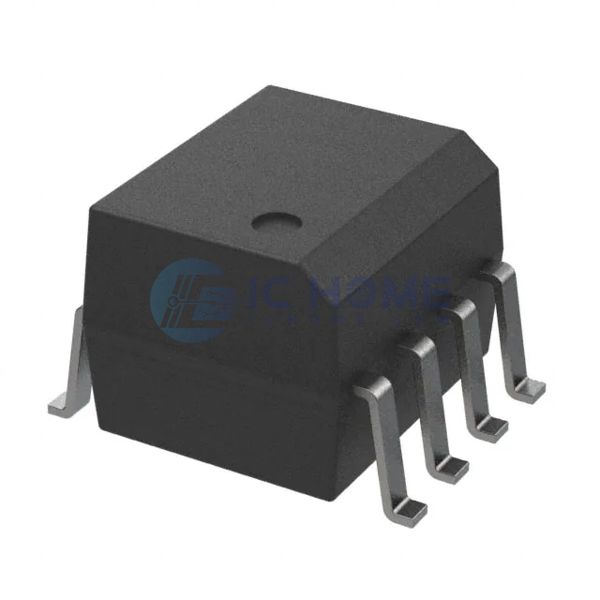

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
