| Name | Value |
|---|---|
| Product Status | Obsolete |

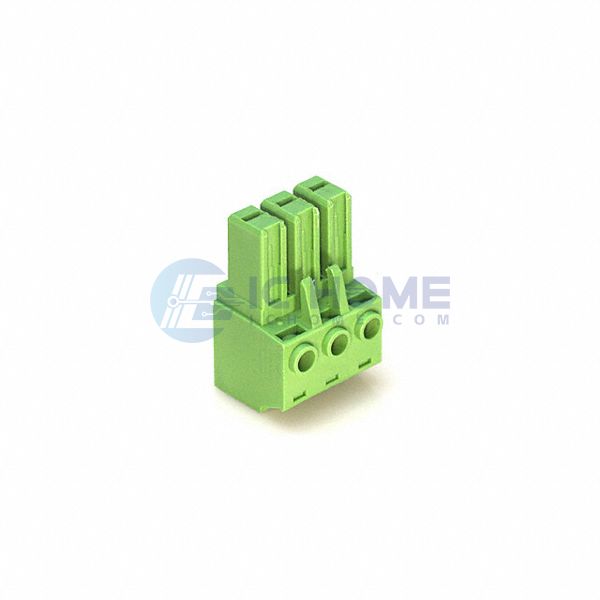

| Type | Plug, Female Sockets |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 20A |
| Voltage - IEC | 1 kV |
| Current - UL | 20 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 10-30 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
