| Name | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Open Drain |
| Voltage - Supply | 3V ~ 20V |
| Current - Quiescent (Max) | 100 µA |
| Current - Output High, Low | -, 136mA |
| Logic Level - Low | 1.5V ~ 4V |
| Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 100ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |

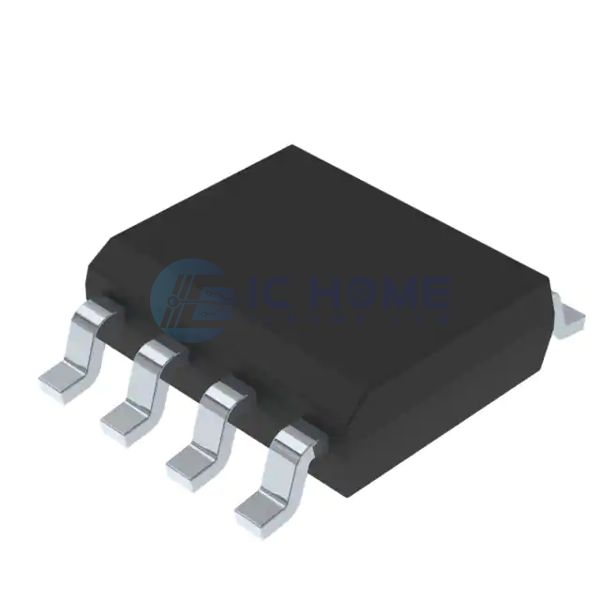

| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
