| Name | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | 10 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 5A |
| Power - Max | 75 W |
| Switching Energy | 2.59mJ (on), 9mJ (off) |
| Input Type | Standard |
| Gate Charge | - |
| Td (on/off) @ 25°C | 690ns/12.1µs |
| Test Condition | 960V, 5A, 1kOhm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

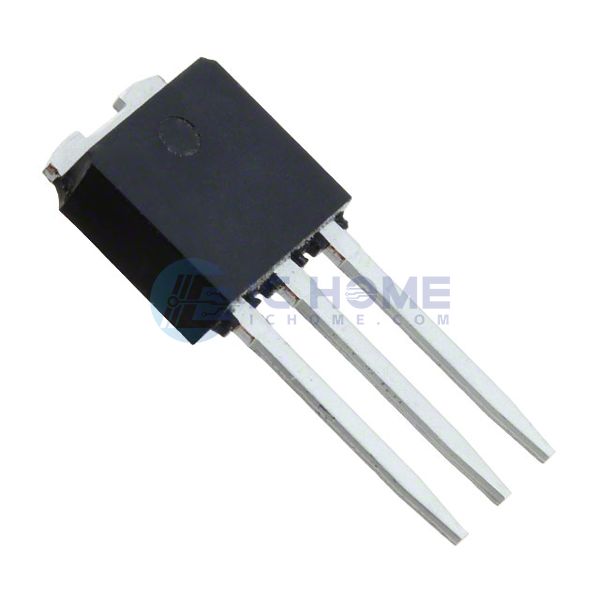

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TO-251 (IPAK) |
