| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 620 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 2.8A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 890 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 90W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |

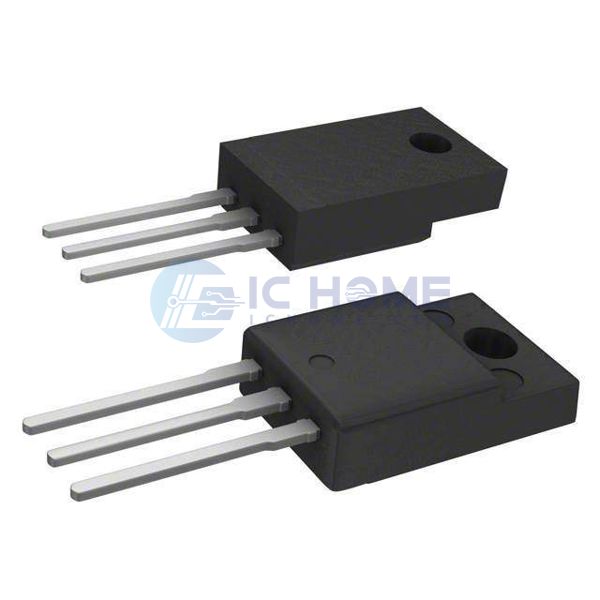

| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 Full Pack |
