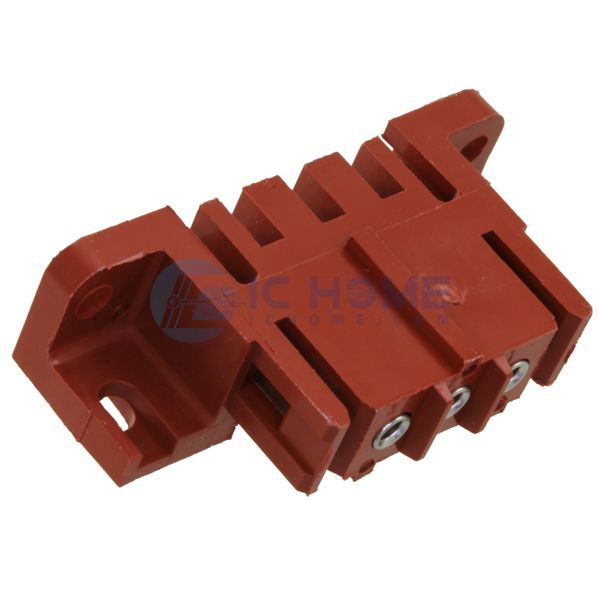

| Name | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Red |
| Insulation Height | 0.433" (11.00mm) |
| Contact Length - Post | 0.186" (4.72mm) |
| Operating Temperature | -55°C ~ 130°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mounting Flange |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600V |
