| Name | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 1mA, 20mA |
| Logic Level - Low | 1.1V |
| Logic Level - High | 1.9V |
| Max Propagation Delay @ V, Max CL | 13ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |

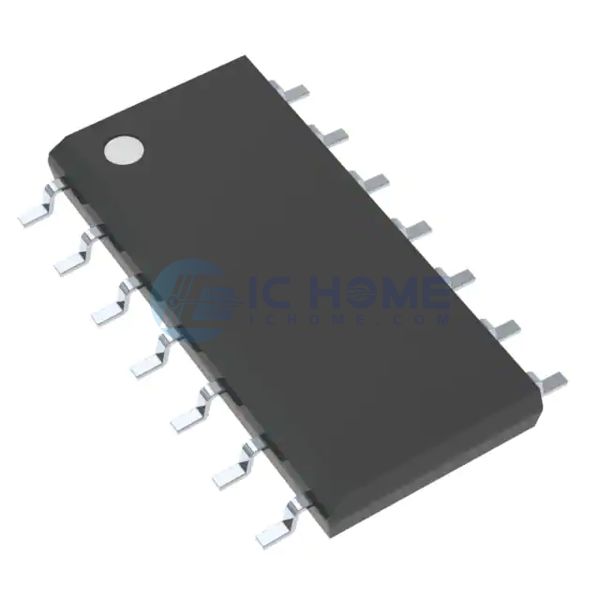

| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
